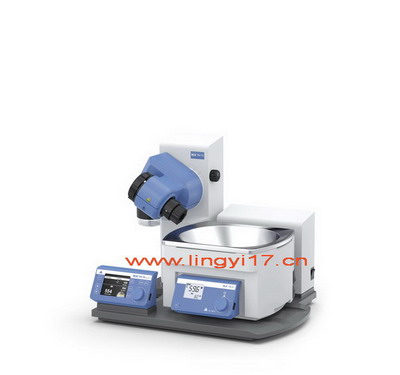

德国IKA RV 10 auto FLEX旋转蒸发仪

德国IKA RV 10 auto FLEX旋转蒸发仪 | 时间: October-4 14:41:18 | 分类:其它仪器

凌仪生物专业提供高速离心机,伯乐电泳仪,德国eppendorf艾本德移液器,PCR基因扩增仪,雅培原位杂交仪Thermo热电离心机等实验室仪器设备,要省钱,别错过哦。

 德国IKA RV 10 auto FLEX旋转蒸发仪

产品介绍:
德国IKA RV 10 auto FLEX旋转蒸发仪
The completely revised RV 10 auto is the flagship of the IKA Rotation Evaporator product line. Its impressive features include an innovative control concept with a bright, high-contrast, TFT, color-graphic control panel, an integrated vacuum controller, cooling water monitoring and mature safety standards. The RV 10 auto offer all properties required for efficient, safe, and cost-effective operations. These include automatic control of the vacuum and cooling water volume. Its intuitive handling concept quickly leads its users to their desired results in every application. Thanks to its extended ramp programming capability, the RV 10 auto allows users to carry out customized procedures. Other innovative features, such as smooth start, interval mode, right-left operation in interval mode, or the timer function for time-lapse tests, make everyday work in the laboratory much easier. Safety is ensured by the motorized lift with safety-stop function that automatically lifts the evaporation flask out of the heating bath in the case of power failure. Additional safety for users is provided by individually adjustable temperature safety circuits, protection against boiling dry, adjustable end-point recognition to prevent glass breakage, and a locking function. The receiving flask and the condenser are also available in coated versions. The USB port or the RS-232 interface enable remote control with the IKA “labworldsoft” software package and an update option with the firmware update tool. The device comes complete with vacuum hoses and hose connectors for your in-house cooling water supply.


  • integrated vacuum controller
  • integrated solvent library with 40 preset solvents and expansion option
  • bright, high-contrast, TFT, color-graphic control panel
  • universal safety heating bath
  • optimized heating bath volume for rapid achievement of working temperature
  • heating bath with ergonomic handles
  • temperature safety circuit
  • boil-dry protection
  • intuitive handling concept with simple menu navigation
  • programming option for up to ten individual procedures
  • smooth start
  • right or left rotation
  • timer function
  • end-point recognition
  • push-off mechanism for tightly-fitting flasks
  • digital interfaces: USB port and RS-232 interface for remote control
  • multi-language operating system
  • automatic cooling water management
  • automatic ventilation
  • automatic heating bath management
德国IKA RV 10 auto FLEX旋转蒸发仪
技术参数:

速度范围
5 - 300 rpm
转动可逆方向
实际转速与设定转速差 < 100rpm
1 ±rpm
实际转速与设定转速差 > 100rpm
1 ±%
升降架
马达
行程
140 mm
计时器
外形尺寸
500 x 430 x 410 mm
重量
18.6 kg
允许环境温度
5 - 40 °C
允许相对湿度
80 %
DIN EN 60529 保护方式
IP 20
RS 232接口
USB接口
模拟输出
电压
100 - 240 V
频率
50/60 Hz
仪器输入功率
100 W
仪器输入功率 待机
3.3 W
